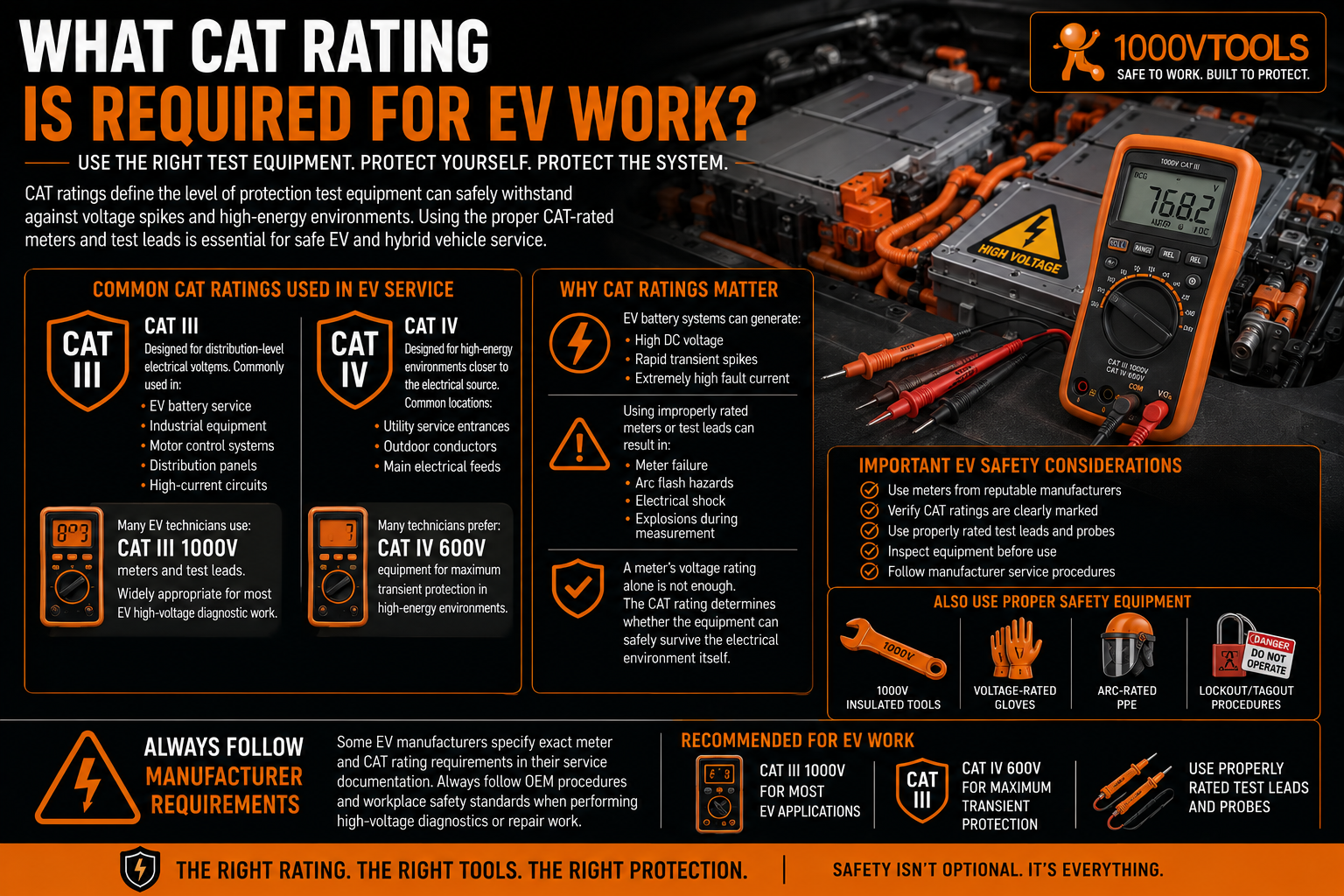

For EV and hybrid vehicle service work, technicians commonly use test equipment rated CAT III 1000V or CAT IV 600V, depending on the type of electrical measurements being performed and the manufacturer’s service requirements.
“CAT ratings” refer to measurement categories established by IEC safety standards for electrical test equipment such as:
- Digital multimeters
- Clamp meters
- Voltage testers
- Test leads
These ratings indicate the tool’s ability to safely withstand transient voltage spikes and high-energy electrical environments.
Common CAT Ratings Used in EV Service
CAT III
CAT III equipment is designed for distribution-level electrical systems and is commonly used in:
- EV battery service
- Industrial equipment
- Motor control systems
- Distribution panels
- High-current circuits
Many professional EV technicians use:
- CAT III 1000V meters and test leads
This rating is widely considered appropriate for most EV high-voltage diagnostic work.
CAT IV
CAT IV equipment is designed for even higher-energy environments closer to the electrical source, such as:
- Utility service entrances
- Outdoor conductors
- Main electrical feeds
Some technicians prefer:
- CAT IV 600V equipment
because it offers a very high level of transient protection while still covering many EV applications.
Why CAT Ratings Matter in EV Work
EV battery systems can generate:
- High DC voltage
- Rapid transient spikes
- Extremely high fault current
Using improperly rated meters or test leads can result in:
- Meter failure
- Arc flash hazards
- Electrical shock
- Explosions during measurement
A meter’s voltage rating alone is not enough. The CAT rating helps determine whether the equipment can safely survive the electrical environment itself.
Important EV Safety Considerations
When selecting electrical test equipment for EV service:
- Use meters from reputable manufacturers
- Verify CAT ratings are clearly marked
- Use properly rated test leads and probes
- Inspect equipment before use
- Follow manufacturer service procedures
In addition to CAT-rated test equipment, EV technicians should also use:
- 1000V insulated tools
- Voltage-rated gloves
- Arc-rated PPE
- Proper lockout/tagout procedures
Always Follow Manufacturer Requirements
Some EV manufacturers specify exact meter and CAT rating requirements in their service documentation. Always follow OEM procedures and workplace safety standards when performing high-voltage diagnostics or repair work.
