DC Electrical Shock Hazards: How EV Battery Voltages Affect Injury Risk

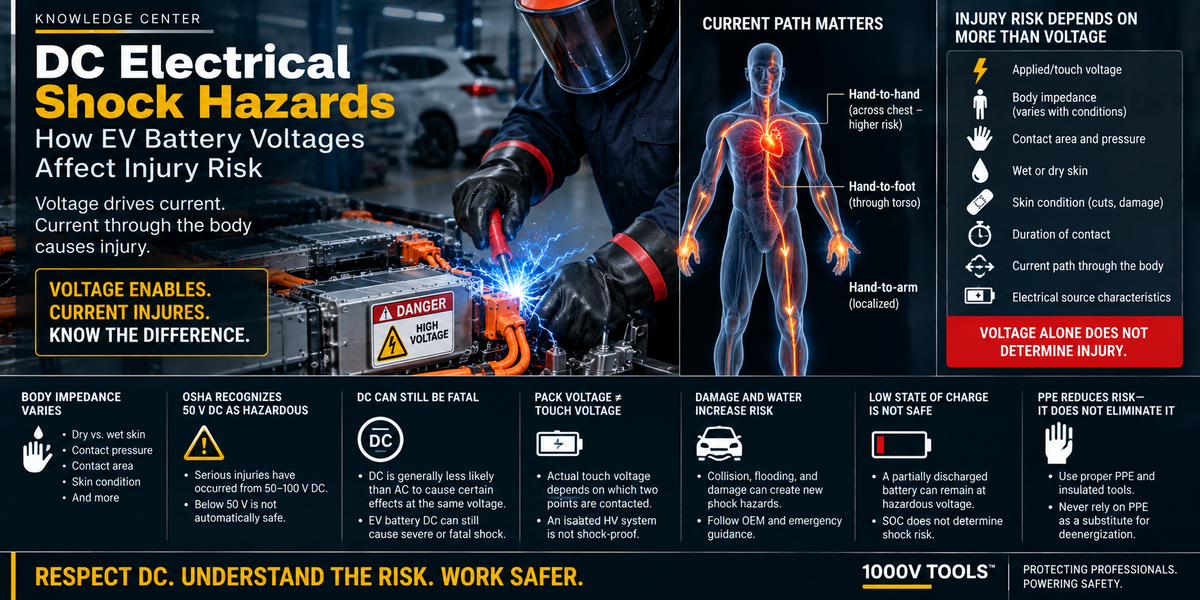

EV technician working near a high-voltage traction battery, illustrating DC electrical shock hazards, current paths through the body, and factors affecting injury risk.

How Electrical Shock Occurs

Electrical shock occurs when current flows through the human body. Voltage is the electrical potential that drives that current — but voltage is not the mechanism of physiological injury. Current flowing through body tissue causes the injury. This distinction is not semantic. It has direct consequences for how EV high-voltage hazards are understood and assessed.

The relationship is governed by the same basic principle as any electrical circuit: current is determined by the applied voltage divided by the total impedance of the circuit, which in a shock scenario includes body impedance, contact resistance, and any other resistance in the conductive path. Because body impedance is not constant and contact conditions vary enormously, the same nominal voltage can produce widely different body currents — and widely different outcomes — under different contact conditions.

This article addresses DC electrical shock as it relates to EV traction-battery high-voltage systems: how voltage, body impedance, current path, contact conditions, and duration interact to create shock hazards. It is not an energized-work procedure and does not substitute for OEM service information, qualified-person determinations, or site-specific energy-control program requirements.

For DC versus AC circuit and arc behavior, see DC vs. AC Electrical Hazards in EV High-Voltage Systems. For battery voltage, capacity, and fault-current fundamentals, see EV Battery Pack Energy Storage: Voltage, Capacity, and Short-Circuit Energy. For qualification, PPE programs, LOTO, and shop controls, see Electrical Safety for EV Fleet Maintenance Programs.

Why EV Battery Voltage Matters

Electrified vehicle traction systems operate at voltages far above the 12-volt conventional vehicle electrical system. Nominal traction-battery voltages commonly described as "400 V" or "800 V" architectures represent general platform design ranges — actual pack voltage varies by platform, state of charge, temperature, and operating conditions. Regardless of the exact value, these voltages are substantially higher than the thresholds at which severe or fatal shock has been documented.

The reason voltage matters is this: as available touch voltage increases, hazardous body current can be driven through higher-resistance contact conditions. At low voltages, skin resistance may limit current to levels that are unpleasant but not seriously injurious under dry conditions. At EV traction-battery voltages, skin resistance no longer provides meaningful protection — the available voltage is sufficient to drive potentially fatal current even through contact conditions that would be safer at lower voltages.

But voltage alone does not establish the actual current through a person. The current depends on the entire circuit: the voltage applied across the body, the body impedance under the specific contact conditions, the impedance of the return path, and the characteristics of the source. Nominal pack voltage is one input to that circuit — not a direct predictor of body current or injury outcome.

Body Impedance: Not a Fixed Value

A common error in informal shock hazard discussions is the use of a single fixed body-resistance number — often cited as 1,000 ohms or similar — to calculate shock current as a simple Ohm's law exercise. IEC 60479 (Effects of Current on Human Beings and Livestock) documents that the human body's electrical impedance is not a fixed value. It varies with touch voltage and with a range of contact conditions.

Factors that affect body impedance in an EV shock scenario include:

  • Skin condition — dry versus wet: Dry intact skin has significantly higher resistance than wet or sweaty skin. Moisture dramatically reduces the skin's resistive contribution to total body impedance.
  • Broken or cut skin: When the skin barrier is breached, the resistive contribution of skin is largely eliminated. Internal body tissue impedance is substantially lower than intact dry skin resistance.
  • Contact pressure: Higher contact force between skin and a conductor reduces contact resistance and increases effective current.
  • Contact area: Larger contact area reduces contact resistance. A palm contact and a fingertip contact at the same voltage produce different body impedance values.
  • Entry and exit locations: The path current takes through the body affects both the impedance of that path and the tissues through which current flows.
  • Duration of contact: Prolonged contact allows skin breakdown to occur, reducing impedance over time during a sustained contact event.
  • Conductive contamination: Conductive fluids, metal particles, or other contamination on the skin surface reduce effective skin resistance.
  • Gloves, clothing, and barriers: Appropriate electrical insulating PPE adds impedance in the circuit and can reduce current, but only when properly rated, inspected, and used for the specific voltage and task.
  • Environmental conditions: Hot, humid working conditions increase perspiration and reduce skin resistance compared to dry indoor environments.

To illustrate the concept — for educational purposes only, not as a human-injury calculation — consider that a simple Ohm's law estimate (I = V / R) produces very different current values at the same voltage depending on assumed body impedance. The point is not to calculate a specific body current from pack voltage, but to recognize that the same voltage can produce meaningfully different body currents depending on contact conditions. No single fixed resistance value reliably characterizes the human body across the range of contact conditions encountered in EV service environments.

OSHA 50-Volt Hazard Recognition

OSHA's electrical standards use 50 volts as a threshold for certain guarding, safety-related work practice, and hazardous-energy-control provisions. OSHA has specifically stated that serious injuries have occurred from DC voltage sources in the range of 50 to 100 V.

Two important clarifications apply to this threshold:

  • 50 V is not a universal physiological safe/deadly boundary. It is a regulatory threshold used to define the scope of certain requirements. OSHA also cautions that voltages below 50 V are not necessarily harmless under all contact conditions. The threshold reflects a policy judgment about where mandatory protective measures are required — not a claim that 49 V cannot injure and 51 V reliably will.
  • EV traction-battery voltages are far above this threshold. The significance of the 50-V threshold in the context of EV service is that it reinforces that EV traction-battery voltages — by a large margin — fall within the range OSHA identifies as requiring appropriate electrical safety controls and protective measures.

Regulatory thresholds should not be converted into physiological predictions. The 50-V threshold is a compliance marker, not a guarantee that any specific voltage will or will not produce a specific injury outcome.

Current Path Through the Body

The path that current takes through the body significantly affects which tissues are exposed and what physiological consequences may result. Shock does not occur from voltage at a single point — it requires a conductive circuit: current must enter the body at one contact point, travel through body tissue, and exit at another contact point.

Common current-path configurations in electrical shock scenarios include:

  • Hand-to-hand: Current entering one hand and exiting the other travels across the chest, potentially exposing cardiac and respiratory tissues.
  • Hand-to-foot: Current traveling from a hand contact to a foot contact may also traverse the chest and torso.
  • Hand-to-forearm or localized contact: Current confined to a limb without traversing the chest may produce localized burns or muscle effects with different cardiac exposure than transthoracic paths.
  • Other configurations: Head contacts, contacts through the trunk, or other configurations create different current paths with different physiological implications.

Current that crosses the chest — particularly transthoracic paths — can expose the heart and respiratory muscles to current that paths confined to a single limb would not. The significance of a specific current path cannot be assigned a precise probability or injury percentage from generic data; individual variation, current magnitude, and duration all interact with path to determine outcome. What can be stated is that path matters and that contacts creating transthoracic current paths represent a category of particular concern.

Contact Duration

Duration is a critical variable in shock injury. A brief inadvertent contact and a sustained contact at the same current level are not physiologically equivalent exposures.

Extended contact duration can increase:

  • The total charge delivered to the body (current × time)
  • Physiological effects on cardiac and respiratory function
  • Tissue heating and internal burn severity
  • The probability of serious or fatal cardiac consequences at given current magnitudes
  • Skin breakdown that further reduces impedance during the contact event

A particularly important consideration for DC shock: DC does not produce the involuntary "let-go" muscular response at the same threshold that power-frequency AC can. Power-frequency AC causes repetitive muscle stimulation that can cause a person to release a conductor below current levels that might cause tetanic muscle contraction. DC can cause sustained muscle contraction that may make it difficult or impossible to release the conductor, potentially extending contact duration and worsening outcomes.

No "safe exposure time" for EV HV contact exists. Elimination of contact is the objective — not management of contact duration.

DC vs. AC Shock: Similarities and Differences

NIOSH guidance notes that DC is generally considered less likely than power-frequency AC to produce certain shock effects — particularly fibrillation — at the same voltage under comparable conditions. The repetitive stimulation of power-frequency AC at 50 or 60 Hz corresponds to cardiac cycle timing in ways that make certain AC shock events more likely to induce ventricular fibrillation at lower current levels compared to steady DC.

This observation must not be misread as a claim that DC is safe or that EV traction-battery DC does not present a serious shock hazard:

  • EV traction-battery DC voltages are sufficient to drive potentially fatal body current through plausible contact conditions, regardless of DC's relative fibrillation threshold compared to AC.
  • DC can still induce cardiac effects, particularly at higher current magnitudes and with longer contact durations.
  • DC sustained muscle contraction can extend contact duration in ways that worsen outcome.
  • DC can cause severe electrical burns and internal tissue injury independent of cardiac effects.

Neither AC nor DC is universally "more dangerous" across all scenarios, voltages, and contact conditions. Both present serious shock hazards at EV traction-battery voltage levels. For a fuller discussion of DC versus AC electrical characteristics in EV systems, see DC vs. AC Electrical Hazards in EV High-Voltage Systems.

Types of Shock Injury

Electrical shock from EV high-voltage DC systems can produce a range of physiological consequences depending on current magnitude, path, duration, and individual conditions:

  • Painful shock: Even at current levels below those causing more severe effects, shock can be intensely painful.
  • Involuntary muscular reaction: Sudden muscle contraction can cause immediate, uncontrolled movement.
  • Loss of muscular control: Current through motor neurons and muscles can cause the person to lose voluntary control of affected muscles.
  • Sustained muscle contraction: DC can produce tetanic contraction that prevents voluntary release of a conductor.
  • Respiratory effects: Current affecting respiratory muscles can impair breathing during contact; effects may persist after contact ends.
  • Cardiac effects: Including rhythm disturbances and, at sufficient current levels and durations through cardiac tissue, ventricular fibrillation or other serious cardiac consequences.
  • Internal tissue injury: Current flowing through tissue generates heat; internal burns can occur without visible external injury at the contact point.
  • Electrical burns: Burns at entry and exit points and along current paths, potentially severe.
  • Secondary injury: Involuntary muscular reaction during shock can cause falls, collisions with vehicle structures or equipment, or other trauma independent of the electrical injury itself.
  • Death: Fatal electrical injury can result from cardiac, respiratory, or combined effects at current levels achievable in EV traction-battery shock scenarios.

These outcomes are not assigned to exact milliampere thresholds here. Published data from IEC 60479 and similar sources describe probabilistic relationships between current magnitude, duration, and physiological effects across populations — not guaranteed individual outcomes at specific current levels. Individual physiology, contact conditions, and path all affect the relationship between current and outcome.

Pack Voltage vs. Touch Voltage

A critical and frequently misunderstood distinction: the nominal voltage of an EV traction battery pack is not necessarily the voltage that would appear across a person's body in a shock scenario.

Pack voltage describes the electrical potential difference across the full battery pack terminals. Touch voltage — the voltage actually applied across the shock path through the body — depends on which two points are contacted and their electrical relationship within the system.

Possible contact scenarios with different touch voltages include:

  • Contact across two conductors at different HV potentials, where the voltage between those points may be at or near full pack voltage
  • Contact from an HV conductor to the vehicle chassis where an insulation fault or conductive path exists between the HV system and chassis, where the touch voltage depends on the impedance of that fault path
  • Contact between two points within an exposed battery assembly at different module or cell-group voltages, where touch voltage corresponds to the voltage between those specific points
  • Contact with a damaged conductor whose insulation failure creates an unintended voltage potential at an accessible surface

Simply touching the exterior of an intact, properly insulated HV component enclosure does not place full pack voltage across the body. The insulation and enclosure are designed to prevent that contact. The hazard arises when that insulation or enclosure is compromised — through damage, fault, service procedures exposing conductors, or other conditions — and a conductive path through the body becomes possible.

Isolated HV Systems and the Vehicle Chassis

Many EV traction high-voltage systems are designed with electrical isolation between the HV traction circuit and the vehicle chassis (body and frame). This is sometimes described as a floating or isolated HV system. In an isolated system, the chassis is not intended to serve as the return conductor for the HV circuit in the way that a grounded conductor functions in conventional premises electrical systems.

The practical implication is that in a properly functioning isolated HV system, contact between one HV conductor and the vehicle chassis does not complete an HV circuit through the chassis in the same way it would in a grounded system. Some level of protection against single-point faults is a design characteristic of isolation.

However, isolation does not mean shock-proof, and several critical limitations apply:

  • Isolation depends on the integrity of insulation, components, and the isolation monitoring system. Damage, water intrusion, contamination, degraded insulation, or component failure can degrade or eliminate isolation.
  • Shock remains possible through simultaneous contact with two different HV potentials, regardless of isolation architecture.
  • Platform-specific grounding and isolation architectures vary. Assumptions about one platform's isolation do not necessarily describe another's.
  • The vehicle chassis may carry HV potential under fault conditions even in systems designed with isolation.

Isolated does not mean shock-proof. Isolation is a design feature that reduces certain single-point fault shock risks — it is not a guarantee that the vehicle's HV system cannot deliver shock under any contact condition.

Damaged and Wet Vehicles

Collision damage, flooding, conductive contamination, insulation failure, exposed terminals, and physically displaced components can fundamentally change the shock exposure conditions present on a vehicle. Normal-system assumptions about insulation integrity, isolation, and accessible voltage may not describe a damaged vehicle.

NHTSA warns that damaged EV batteries and HV components can present high-voltage shock hazards. NHTSA specifically identifies flooded or submerged EVs as potential HV shock hazards — water intrusion can compromise HV insulation and isolation in ways that create shock paths that would not exist in an undamaged vehicle.

Key points for damaged or water-involved EVs:

  • Visual assessment of a damaged vehicle does not establish whether its HV system is safe to approach or touch. Insulation failures, isolation faults, and compromised components are not reliably visible from the exterior.
  • Conductive standing water in contact with a vehicle with compromised HV insulation may itself carry HV potential.
  • Displaced or deformed HV components may expose conductors that would be enclosed in an intact vehicle.
  • Normal service procedures and isolation assumptions do not govern damaged or water-involved vehicles.

OEM emergency response guidance and qualified engineering assessment govern the approach to damaged and water-involved EVs. These vehicles should not be evaluated for HV safety from visual markings or appearance alone.

Battery State of Charge and Shock Hazard

A persistent and dangerous misconception is that a partially or heavily discharged traction battery presents a reduced shock hazard. This is incorrect.

State of charge (SOC) describes the remaining usable electrochemical energy in the battery relative to its capacity. A battery at low SOC has less remaining energy to deliver — but its terminal voltage does not fall proportionally with SOC across most of the usable range. Traction batteries maintain voltage levels that remain hazardous across most of their SOC range. Only at very low SOC approaching complete depletion does open-circuit voltage fall substantially, and even then, the battery may not be discharged to a voltage level that eliminates shock hazard.

Low SOC does not mean low shock hazard. There is no SOC level that can be identified from outside the vehicle as establishing that exposed HV conductors are safe to contact.

Absence-of-voltage verification using OEM-specified test equipment at OEM-designated measurement points — following OEM isolation procedures — is the method for establishing that HV conductors are deenergized. SOC indicator readings, estimated remaining range, or apparent vehicle discharge state are not substitutes for direct electrical verification.

Practical Hazard Recognition for EV HV Shock

The following principles follow from the considerations above:

  • EV traction-battery voltages are sufficient to drive fatal body current under plausible contact conditions. They must be treated as a serious electrical hazard in all service and response contexts.
  • The shock hazard is present whenever HV conductors are or may be accessible — not just when a vehicle is powered on. A parked, sleeping, or apparently inactive EV retains HV in its traction battery.
  • Wet conditions, damaged skin, conductive contamination, and working environments that increase perspiration all reduce body impedance and increase shock severity at a given touch voltage.
  • Contact with two HV conductors or terminals simultaneously presents the most direct shock path at near-pack voltage. All accessible HV conductors, terminals, and exposed internal battery components must be treated as potential shock sources.
  • Operating a service disconnect or opening contactors initiates part of the isolation process but does not verify deenergization. Residual voltage from capacitors, charging sources, or system topology may remain. OEM verification procedures using specified test equipment establish actual circuit condition.
  • Appropriate electrical insulating PPE and insulated tools can reduce shock exposure risk when properly rated and used. They do not authorize energized contact and do not replace OEM isolation procedures or qualified-person determinations.

PPE and Insulated Tools: Role and Limitations

Arc-rated and electrically insulated PPE, insulating blankets, and insulated tools can provide meaningful protection against specific electrical contact hazards when selected for the voltage class, properly inspected, and used correctly for the intended task. They are an important part of a complete electrical safety program for EV service work.

Their limitations must also be understood:

  • PPE and insulated tools reduce the risk of specific contact exposures. They do not eliminate the underlying hazard or authorize energized contact with HV conductors as routine practice.
  • They do not replace OEM isolation procedures, energy-control programs, or absence-of-voltage verification.
  • Damaged, contaminated, improperly rated, or incorrectly used insulating equipment may not provide the protection its rated condition would suggest.
  • The goal of EV HV electrical safety is elimination of energized exposure where feasible — not management of energized contact risk through PPE alone.

Common Misunderstandings About EV DC Shock Hazards

"Voltage alone determines shock severity."
Incorrect. Voltage drives current, but actual body current depends on body impedance, contact conditions, and the complete circuit path. The same voltage produces different body currents under different contact conditions.

"A 400 V battery always produces a specific body current."
Incorrect. Body current at a given touch voltage depends on body impedance, which varies with skin condition, contact area, contact pressure, moisture, and other factors. No fixed body current can be assigned to a nominal pack voltage.

"Human body resistance is a fixed value."
Incorrect. Body impedance varies with touch voltage and contact conditions, as documented in IEC 60479. Dry intact skin has much higher resistance than wet or broken skin. Using a single fixed resistance value to predict shock current produces unreliable results.

"Dry skin makes EV HV contact safe."
Incorrect. EV traction-battery voltages are sufficient to drive hazardous current even through dry intact skin. The voltage is high enough to overcome the resistive contribution of dry skin in ways that lower voltages cannot.

"DC cannot cause fatal shock."
Incorrect. DC can cause fatal electrical shock. EV traction-battery DC voltages and available currents are more than sufficient to produce fatal outcomes under plausible contact conditions.

"DC is always more dangerous than AC."
Incorrect. Neither DC nor AC is universally more dangerous across all voltages, currents, and contact conditions. Both present serious hazards at EV traction-battery voltage levels.

"50 V is the exact boundary between safe and dangerous."
Incorrect. OSHA's 50-V threshold is a regulatory compliance marker, not a physiological threshold. Voltages below 50 V are not necessarily harmless under all conditions, and 50 V is not a guarantee of safety just below nor certainty of serious injury just above.

"Pack voltage always equals touch voltage."
Incorrect. Touch voltage — the voltage applied across the shock path through the body — depends on which points are contacted and their electrical relationship within the system. Simply contacting the exterior of an intact insulated enclosure does not place pack voltage across the body.

"An isolated HV system cannot shock someone."
Incorrect. Isolation reduces certain single-point fault shock risks but does not prevent shock from simultaneous contact with two HV potentials or from conditions where insulation degradation, damage, or contamination creates unintended conductive paths.

"The vehicle chassis is always an HV return path."
Incorrect. Many EV HV systems are designed with isolation between the traction HV circuit and the chassis. The chassis is not normally intended to function as the HV return conductor. However, fault conditions can alter this, and platform architectures vary.

"Low battery SOC means low shock hazard."
Incorrect. Traction batteries maintain hazardous voltage levels across most of their SOC range. Low SOC does not establish that exposed HV conductors are safe to contact. Only OEM-specified absence-of-voltage verification establishes deenergized condition.

"Opening the contactors or service disconnect proves every circuit is safe."
Incorrect. Operating a disconnect initiates isolation but does not complete verification. Residual capacitor charge, external charging sources, or platform-specific topology may leave voltage present after disconnect operation. Verification requires OEM-specified test equipment and procedures at OEM-designated measurement points.

"Insulated tools or gloves make energized HV contact acceptable."
Incorrect. Properly rated insulating PPE and tools reduce specific contact risks and are an important part of EV electrical safety programs. They do not authorize energized contact as routine practice and do not replace OEM isolation procedures, energy-control programs, or qualified-person determinations.

Practical Takeaways

  • Voltage drives current. Current through the body causes physiological injury. Shock severity cannot be determined from voltage alone.
  • EV traction-battery voltages are far above the levels at which serious and fatal shock has been documented. They must be treated as a serious electrical hazard in all service and response contexts.
  • Body impedance is not a fixed value. It varies with skin condition, moisture, contact area, pressure, and other factors. The same touch voltage produces different body currents under different contact conditions.
  • OSHA's 50-V threshold is a regulatory compliance marker, not a physiological guarantee. Voltages below 50 V are not necessarily safe; EV traction-battery voltages are well above this threshold by any measure.
  • Current path through the body matters. Paths that traverse the chest create different physiological exposure than paths confined to a limb. Contact configurations that create transthoracic current paths are a particular concern.
  • Contact duration significantly affects injury severity. DC can cause sustained muscle contraction that prevents voluntary conductor release, potentially extending contact duration and worsening outcomes.
  • DC can cause fatal shock. It is not universally more or less hazardous than AC — both present serious hazards at EV traction-battery voltage levels.
  • Pack voltage is not the same as touch voltage. Touch voltage depends on which points are contacted and their electrical relationship. Contacting an intact, insulated enclosure exterior does not place pack voltage across the body.
  • Isolated HV architecture reduces certain single-point fault risks but does not prevent shock from two-point HV contact or from degraded insulation conditions. Isolated does not mean shock-proof.
  • Damaged, flooded, or contaminated vehicles may present shock hazards that differ substantially from normal-system conditions. Visual assessment does not establish HV safety on damaged vehicles.
  • Low SOC does not mean low shock hazard. Traction batteries maintain hazardous voltage across most of their SOC range. Only OEM-specified absence-of-voltage verification establishes deenergized condition.
  • The goal of EV HV electrical safety is elimination of energized exposure wherever feasible. PPE and insulated tools supplement — not replace — OEM isolation procedures and qualified-person assessment.

⚠️ Safety Notice: This article provides a conceptual overview of DC electrical shock hazards in EV high-voltage systems for educational purposes. It does not provide a shock-risk calculation method, a PPE selection procedure, or an energized-work authorization. EV high-voltage systems present serious shock hazards that require OEM service information, qualified-person determinations, site-specific energy-control programs, appropriate electrical PPE, and verified deenergization before exposed-conductor work. This article does not substitute for those requirements or for jurisdiction-specific regulatory compliance review.
