EV High-Voltage Warning Labels, Color Coding, and Identification Systems

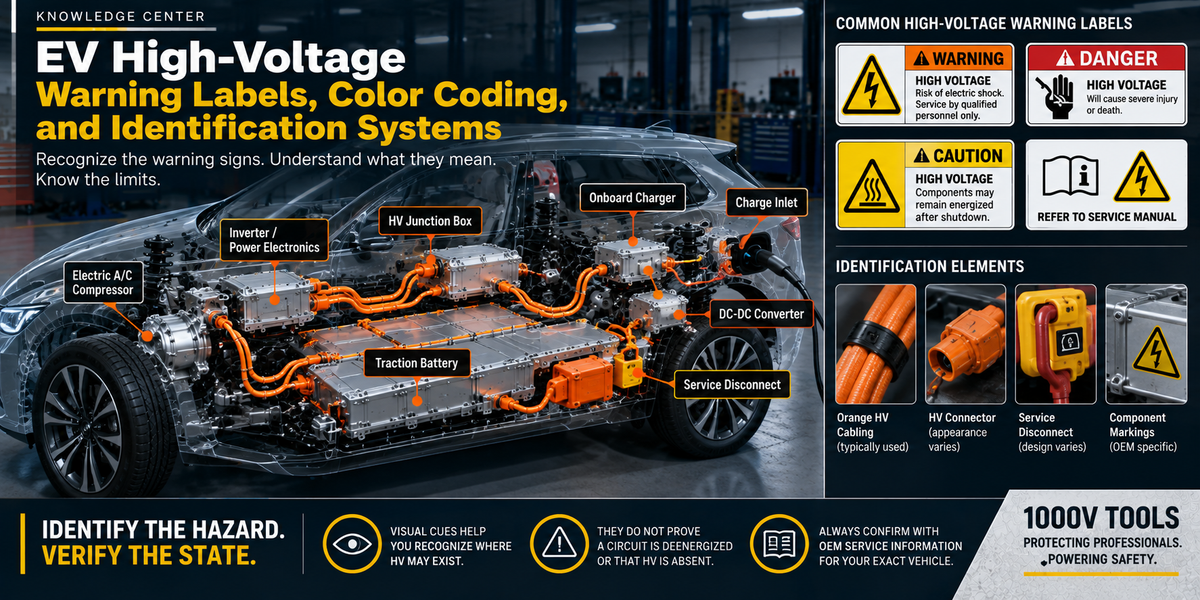

EV high-voltage system showing orange HV cabling, electrical warning labels, component markings, connectors, and service disconnect identification used to recognize potential electrical hazards.

Why Visual Identification Matters — and What It Cannot Do

Electrified vehicle high-voltage systems are not always visually obvious. Traction batteries, inverters, power-control assemblies, HV busbars, and interconnecting circuits may be enclosed within vehicle structures, hidden under panels, or integrated into combined assemblies that give little external indication of their internal electrical character. Visual identification systems — orange cabling, warning labels, electrical-hazard symbols, component markings, and connector design — exist to help technicians and responders recognize where high-voltage hazards may be present.

These systems serve a critical but limited function. They communicate where HV may exist. They do not establish whether a marked circuit is presently energized or isolated, whether stored energy has been discharged, whether an external source is supplying voltage, or whether a location without visible markings is free of HV.

This article explains how EV HV identification systems work, what variation exists across manufacturers and platforms, and why identification must never be confused with verification of electrical condition. It does not cover HV shutdown procedures, technician qualification, or energy-control program requirements — see Electrical Safety for EV Fleet Maintenance Programs for those topics.

Orange HV Cabling

Orange is the dominant visual identifier for high-voltage cabling in electrified vehicles. DOE guidance describes HV power cables in electrified vehicles as typically using distinctive coloring or markings, commonly orange. NHTSA emergency-response guidance similarly uses orange HV cabling as an important recognition cue for responders approaching electrified vehicles.

Orange cabling is widely associated with circuits that may include:

  • Traction battery terminals and battery-side HV conductors
  • HV distribution busbars and conductors between the battery and HV bus
  • Inverter HV input and output conductors
  • Motor-side conductors between the inverter and traction motor
  • Onboard charger HV connections
  • DC fast-charge path conductors
  • DC-DC converter HV input conductors
  • Electric A/C compressor and HV heater supply conductors
  • HV junction box internal conductors and busbars

Orange is a widely used convention, not a universal regulatory requirement applying identically to every manufacturer, market, and platform. "Typically," "commonly," and "widely used" accurately describe orange's role — no claim that every HV conductor on every vehicle must be orange-jacketed is warranted.

Orange Identifies HV — Not DC

A common and hazardous misunderstanding is that orange cables carry DC because the traction battery is a DC source. This is incorrect.

Orange jacketing identifies high-voltage conductors. It does not identify the type of current those conductors carry. Both DC and AC HV conductors may be orange-jacketed, because both are high-voltage circuits requiring recognition:

  • Battery-side orange conductors carry HV DC from the traction battery to the HV bus and inverter input.
  • Inverter-to-motor orange conductors carry inverter-generated multiphase AC to the traction motor. These are high-voltage AC conductors — not DC — and are orange-jacketed because they are HV circuits, not because of their current type.
  • AC charging conductors between the charge inlet and onboard charger carry premises AC during charging sessions.

Knowing that a conductor is orange establishes that it is a high-voltage circuit requiring appropriate recognition and precaution. Determining whether that circuit carries DC, AC, or switched inverter output requires knowledge of circuit topology from OEM service information — not interpretation of the cable color alone. For a full discussion of AC and DC electrical behavior in EV HV systems, see DC vs. AC Electrical Hazards in EV High-Voltage Systems.

The Limits of Orange: HV Can Exist Where Orange Is Not Visible

Orange cable jacketing identifies external conductors that are routed through visible portions of the vehicle. It is not a complete map of the vehicle's HV system. High-voltage potential can exist in locations where no externally visible orange cable is present, including:

  • Internal battery busbars and terminals: HV conductors inside a battery pack enclosure are not externally visible. The interior of a traction battery module contains HV potential regardless of what is visible at the exterior of the enclosure.
  • Inverter and power-electronics internals: The internal conductors, capacitors, busbars, and circuit boards of an inverter or integrated power-electronics assembly carry HV. None of these are externally visible from the housing surface.
  • Integrated module internals: A combined inverter/DC-DC/charger assembly may have no externally routed orange cable between its internal stages. HV is present internally regardless.
  • HV connector terminals: The terminal contacts inside an HV connector are at HV potential when the connector is engaged and the circuit is energized. The terminal contacts are not orange and are not externally visible when mated.
  • HV junction box internals: Internal busbars, contactors, and fuse elements within HV junction boxes carry HV without external orange markings on those internal components.
  • Charging assembly internals: The internal HV stage of an onboard charger or DC fast-charge assembly carries HV during and after charging sessions.

The principle that follows directly: no visible orange cable does not mean no high voltage is present. The HV circuit boundary is defined by the vehicle's electrical architecture — not by the extent of externally visible orange cabling. A technician who uses absence of orange as evidence of HV absence is applying an incorrect and potentially fatal assumption.

Warning Labels and Electrical-Hazard Symbols

Warning labels on HV components, battery enclosures, HV junction boxes, inverters, charge ports, service disconnects, and associated covers communicate that HV may be present and that special precautions apply. Labels may warn of:

  • High voltage and electrical shock hazard
  • Stored electrical energy
  • Restricted or qualified-person-only access
  • Battery-specific hazards (chemical, thermal, electrical)
  • Service precautions and required PPE
  • Disconnect or isolation information
  • Responder hazards and recommended actions

The lightning-bolt electrical-hazard symbol is widely used on HV components across manufacturers and markets. Its presence communicates danger and the need for appropriate precaution. It does not independently establish:

  • The circuit's present voltage or energization state
  • Whether the circuit has been isolated or discharged
  • The isolation boundary of the component
  • The stored-energy condition of associated capacitors or the battery
  • A safe service procedure for the component

Label design varies significantly. Colors, signal words (DANGER, WARNING, CAUTION), wording, pictograms, voltage information, placement, and terminology differ by manufacturer, platform, model year, component type, and market. No single label style should be treated as universal, and the absence of a specific expected label style does not mean the component is not HV.

Component Markings

Individual HV components commonly carry markings identifying their function, voltage class, or service precautions. Components that may carry such markings include:

  • Traction battery pack enclosures and battery management system components
  • Inverters and power-control units
  • DC-DC converters
  • Onboard chargers and integrated charging modules
  • HV junction boxes and distribution assemblies
  • Electric A/C compressors and HV heaters
  • Integrated drive units
  • Service disconnects and manual service disconnect (MSD) assemblies

OEM terminology for these components varies substantially. The same electrical function may appear under names such as Power Control Unit, Inverter/Converter Assembly, Electric Converter Unit, Integrated Power Module, or other OEM-specific designations. Component name and housing appearance are not reliable methods for identifying internal function or HV circuit relationships across platforms. OEM service information for the specific vehicle establishes component identity, function, and circuit relationships.

Other Colors and Color Coding Beyond Orange

Orange is the predominant HV conductor identification color, but other colors appear on various vehicle systems. The meaning of non-orange colors is not universal and must not be inferred from a generic color chart.

Other colors may appear on low-voltage wiring, signal and control circuits, HV interlock circuits, coolant system hoses and components, charging equipment cables, connector housings, service device handles, and manufacturer-specific identification systems. Their meaning and function in any specific context must be established from the OEM service information for that platform.

No universal color-to-function assignment is provided here because no such universal assignment exists across the full range of electrified vehicle manufacturers, platforms, and markets.

HV Connectors

High-voltage connectors are often associated with orange cable jackets, orange or contrasting-color connector housings, locking mechanisms, retention features, or HV warning markings. These design elements are intended to aid recognition and reduce the likelihood of inadvertent disconnection or incorrect mating.

Connector appearance is a recognition clue — not proof of circuit function, current type, voltage state, or safe handling. Key principles:

  • A connector associated with an orange cable is an HV connector, but the cable color does not establish whether the circuit is energized or what type of current it carries.
  • A connector without orange jacketing or obvious HV marking is not thereby confirmed to be low-voltage. Connector appearance varies by manufacturer and platform.
  • An unmated connector is not necessarily deenergized. The circuit on both sides of a disconnected HV connector may retain voltage from the battery, capacitors, an external charging source, or motor-generated voltage.

Generic instructions for disconnecting HV connectors are not provided here. HV connector disconnection procedures are task-specific, platform-specific, and defined by OEM service information.

Service Disconnects and HV Disabling Devices

Most electrified vehicles provide a service disconnect, manual service disconnect (MSD), or other HV disabling device intended to support HV isolation for service. These devices may use distinctive handles, warning labels, contrasting colors, locking or retention features, or OEM-specific markings to aid identification.

There is no universal service disconnect appearance, color, location, design, electrical effect, or operating procedure. Recognition clues vary by manufacturer and platform. Common identification features on many platforms include high-visibility handle colors, prominent HV warning labels, and physical design features (such as a pull tab or hinged cover) that distinguish the disconnect from surrounding components — but these are platform-specific conventions, not universal standards.

The most important principle regarding service disconnects:

Identifying or operating a service disconnect is not the same as verified deenergization of the HV system.

After a service disconnect is removed or operated:

  • Voltage may remain on conductors on both sides of the disconnect, including from DC-link capacitors that retain charge after battery isolation.
  • A connected external charging source (AC EVSE or DC fast charger) may remain energized independent of the battery disconnect.
  • Motor-side conductors may retain voltage potential under applicable mechanical conditions independent of battery isolation.
  • Platform-specific HV topology may result in HV being present in circuit sections not affected by the disconnect's position.

OEM isolation and verification procedures — using OEM-specified test equipment at OEM-designated measurement points — establish actual circuit electrical condition. Operating a disconnect initiates part of the isolation process; it does not complete verification.

HV Interlock Circuits

Some electrified vehicle platforms use low-voltage HV interlock circuits to monitor the status of HV connectors, covers, service disconnects, or HV assemblies. These circuits are designed to detect when a monitored item is opened, removed, or disconnected, and to signal the vehicle's control system to respond — typically by opening main contactors or inhibiting HV functions.

Two distinctions are critical:

  • An interlock circuit is a low-voltage monitoring circuit — not the HV power circuit itself. Interlock signals travel on low-voltage wiring separate from the HV conductors being monitored.
  • Opening or interrupting an interlock circuit does not itself remove HV from the monitored circuit. The interlock signals the control system; whether and how the system responds depends on vehicle state, software, and platform-specific behavior. Interlock response behavior is platform-specific and cannot be generalized.

Interlock status is not a substitute for direct electrical verification of circuit condition using OEM-specified test equipment and procedures.

Damaged or Missing Identification

Visual HV identification systems depend on intact, readable labels, undamaged cable insulation, and accessible component markings. In many service and response contexts — particularly involving collision damage, fire, flood, corrosion, prior repairs, modifications, or disassembly — these identification systems may be compromised:

  • Warning labels may be burned, melted, torn, obscured by damage or debris, or absent because panels or covers to which they were attached are no longer present.
  • Orange cable insulation may be burned, discolored, melted, stripped away, covered by debris, or hidden within damaged or collapsed vehicle structures.
  • Component markings may be illegible due to heat damage, chemical contamination, impact deformation, or corrosion.
  • Service disconnects may be missing, damaged, or inaccessible.
  • HV circuit integrity may be compromised in ways that are not externally apparent.

The principle that must govern damaged-vehicle assessment: absence of recognizable markings — especially on a damaged, burned, or otherwise compromised vehicle — must never be interpreted as absence of high-voltage hazard.

A damaged EV retains stored electrochemical energy in its traction battery unless that energy has been fully dissipated. That energy does not disappear because labels are unreadable or orange cabling is no longer visible. Damaged vehicles require evaluation based on platform-specific OEM guidance and qualified-person assessment — not visual marking interpretation. See also EV Battery Pack Energy Storage: Voltage, Capacity, and Short-Circuit Energy.

OEM Emergency Response Guides and Rescue Sheets

NHTSA maintains a collection of manufacturer-submitted Emergency Response Guides (ERGs) and Rescue Sheets for covered electric-powered and alternative-fuel vehicles. These vehicle-specific resources may identify:

  • HV battery location and general construction
  • HV cable routing and system component locations
  • Vehicle disabling information and recommended disabling sequences
  • Responder hazards specific to the platform
  • Vehicle construction information relevant to extrication

These resources reinforce the core principle of this article: generic visual recognition — orange cables, warning labels, symbols — provides a starting framework for hazard awareness, but exact vehicle identification and OEM-specific information are required to understand what is actually present, where it is located, and how the vehicle should be approached. A responder or technician who has identified the exact vehicle can consult the manufacturer-submitted guide for that platform rather than relying solely on generic identification conventions.

These resources are not a substitute for site-specific energy-control programs, formal training, or qualified-person determinations. They support informed response — they do not replace it.

Identification vs. Verification: A Critical Distinction

This distinction is central to safe EV HV service and response, and it is frequently misunderstood.

Visual identification systems — orange cabling, warning labels, electrical-hazard symbols, component markings — answer one question:

"Where may a high-voltage hazard exist?"

They do not answer:

  • Is this circuit presently energized?
  • Has this circuit been isolated from its energy source?
  • Have capacitors associated with this circuit discharged to a safe level?
  • Is an external charging source supplying voltage to this circuit?
  • Could this circuit be generating voltage from motor/generator action?
  • Is there a fault condition creating unexpected voltage in this circuit?
  • Is it safe to contact this conductor or terminal?

Identification recognizes potential hazard. Verification establishes actual electrical condition.

Verification requires OEM-specified test equipment, appropriate measurement techniques, and confirmed readings at OEM-designated measurement points following OEM isolation and verification procedures. It cannot be accomplished by observing cable color, reading a label, or noting the position of a service disconnect.

A technician who has identified an orange conductor has learned that HV may be present at that conductor. That technician has not learned anything about the conductor's present electrical state. The next step is verification — not contact.

OSHA: Applicable General Principles

OSHA 29 CFR §1910.333 requires safety-related work practices to prevent electric shock and other injuries when employees work near or on electrical equipment or circuits that are or may be energized. The standard requires appropriate identification of hazardous energy, deenergization where feasible, qualified-person determinations, and verification of the deenergized condition before unprotected contact.

OSHA 29 CFR §1910.335 addresses safeguards for personnel protection, including use of protective equipment and safety signs and tags.

These general principles apply to energized electrical work in the contexts addressed by those standards. OSHA does not establish the automotive orange-cable convention, prescribe EV-specific vehicle labeling systems, or provide EV-specific HV identification requirements. The orange-cable convention and HV labeling practices in electrified vehicles reflect industry practice and manufacturer design choices — not a specific OSHA EV labeling mandate.

Common Misunderstandings About EV HV Identification

"All orange cables carry DC."
Incorrect. Orange identifies HV conductors — not DC conductors specifically. Motor-side conductors between the inverter and traction motor carry inverter-generated multiphase AC and are orange-jacketed. Battery-side conductors carry DC and are also orange-jacketed. Orange indicates HV; the current type requires knowledge of circuit topology.

"If it isn't orange, it isn't HV."
Incorrect. HV can exist where no orange cable is externally visible, including inside battery packs, inverter housings, integrated power-electronics modules, HV connector terminals, and other enclosed assemblies. Absence of visible orange is not evidence of HV absence.

"Every manufacturer uses identical HV labels."
Incorrect. Warning label design, wording, signal words, pictograms, colors, voltage information, and placement vary by manufacturer, platform, model year, component, and market. No single label format is universal.

"A warning symbol tells me exactly what voltage is present."
Incorrect. An electrical-hazard symbol communicates that HV may be present and that precautions apply. It does not establish the circuit's specific voltage, present energization state, isolation condition, or stored-energy level.

"Every service disconnect is orange or works the same way."
Incorrect. Service disconnect appearance, color, location, design, and electrical effect vary by manufacturer and platform. There is no universal disconnect design or appearance.

"Removing a service disconnect proves deenergization."
Incorrect. Operating a service disconnect initiates part of the isolation process. It does not discharge DC-link capacitors, deenergize a connected charging source, eliminate motor-generated voltage potential, or address platform-specific HV topology that may leave voltage present in portions of the circuit. Deenergization must be verified using OEM-specified test equipment and procedures.

"A non-orange connector cannot be HV."
Incorrect. HV connector appearance varies by manufacturer and platform. A connector without orange jacketing or obvious HV markings is not thereby confirmed to be low-voltage. Connector appearance is a recognition clue, not a definitive circuit identification method.

"Every EV wiring color has a universal meaning."
Incorrect. Orange is widely used for HV conductors, but no universal color-to-function assignment applies across all manufacturers, platforms, and markets for other colors. Non-orange colors must be interpreted using OEM service information for the specific vehicle.

"Missing warning labels mean the component is not HV."
Incorrect. Labels can be burned, missing, obscured, or absent because the panel or cover they were attached to is no longer present. A component without a readable warning label may still be an HV component. This is especially important on damaged, burned, or previously repaired vehicles.

"Orange cabling shows the entire HV system."
Incorrect. Orange external cabling identifies routed HV conductors that are externally visible. It does not show internal battery busbars, internal power-electronics conductors, connector terminal contacts, or any HV conductors inside enclosed assemblies. Orange cabling is a partial recognition aid — not a complete HV system map.

"Damaged vehicles can be evaluated safely from visual markings alone."
Incorrect. Collision, fire, and other damage can destroy, obscure, or displace warning labels, orange cabling, and component markings. A damaged EV retains stored battery energy regardless of the readability of its identification systems. Damaged vehicles require platform-specific OEM guidance and qualified-person assessment — not visual marking evaluation.

Practical Takeaways

  • Orange cable jacketing is the dominant visual identifier for HV conductors in electrified vehicles. It identifies HV — not DC. Both battery-side DC conductors and motor-side AC conductors may be orange-jacketed.
  • Orange cabling is a recognition aid, not a complete HV system map. HV can exist inside battery packs, inverter housings, integrated modules, and connector terminals where no external orange cable is visible. Absence of orange is not evidence of HV absence.
  • Warning labels and electrical-hazard symbols communicate where HV may exist. They do not establish the circuit's present energization state, isolation condition, or stored-energy level.
  • Label design varies by manufacturer, platform, model year, and market. No single label format is universal. Absence of a familiar label style does not mean the component is not HV.
  • Component names and housing appearance vary significantly across platforms. OEM service information establishes component identity, function, and HV circuit relationships — not housing shape or name comparison.
  • Non-orange colors do not have universal meanings in EV HV systems. Their significance must be established from OEM service information for the specific platform.
  • HV connector appearance varies. A connector without obvious HV markings is not thereby confirmed to be low-voltage. Connector appearance is a recognition clue, not a definitive identification method.
  • Service disconnects vary in appearance, location, design, and electrical effect. Identifying or operating a disconnect is not the same as verified deenergization. Verification requires OEM-specified test equipment and procedures.
  • HV interlock circuits are low-voltage monitoring circuits, not HV power circuits. Interrupting an interlock does not itself remove HV from the monitored circuit.
  • On damaged vehicles, warning labels, orange cabling, and component markings may be destroyed, obscured, or absent. Absence of readable markings on a damaged vehicle must never be interpreted as absence of HV.
  • NHTSA Emergency Response Guides and Rescue Sheets provide vehicle-specific HV identification and disabling information for covered platforms. They supplement — but do not replace — qualified-person assessment and site-specific energy-control procedures.
  • Identification answers "where may HV exist?" Verification establishes actual electrical condition. These are different steps requiring different methods. Visual identification systems accomplish the first; only OEM-specified electrical verification accomplishes the second.

⚠️ Safety Notice: This article provides a conceptual overview of EV high-voltage visual identification systems for educational purposes. Warning labels, orange cabling, symbols, and component markings help identify where high-voltage hazards may exist. They are warning systems — not proof that unmarked areas are free of high voltage or that a marked circuit has been deenergized. This article does not substitute for vehicle-specific OEM service information, qualified-person determinations, site-specific energy-control programs, or jurisdiction-specific regulatory compliance review. Consult OEM service information and qualified EV safety professionals for vehicle-specific and task-specific guidance.
