Safe Shutdown Procedures for PV Systems

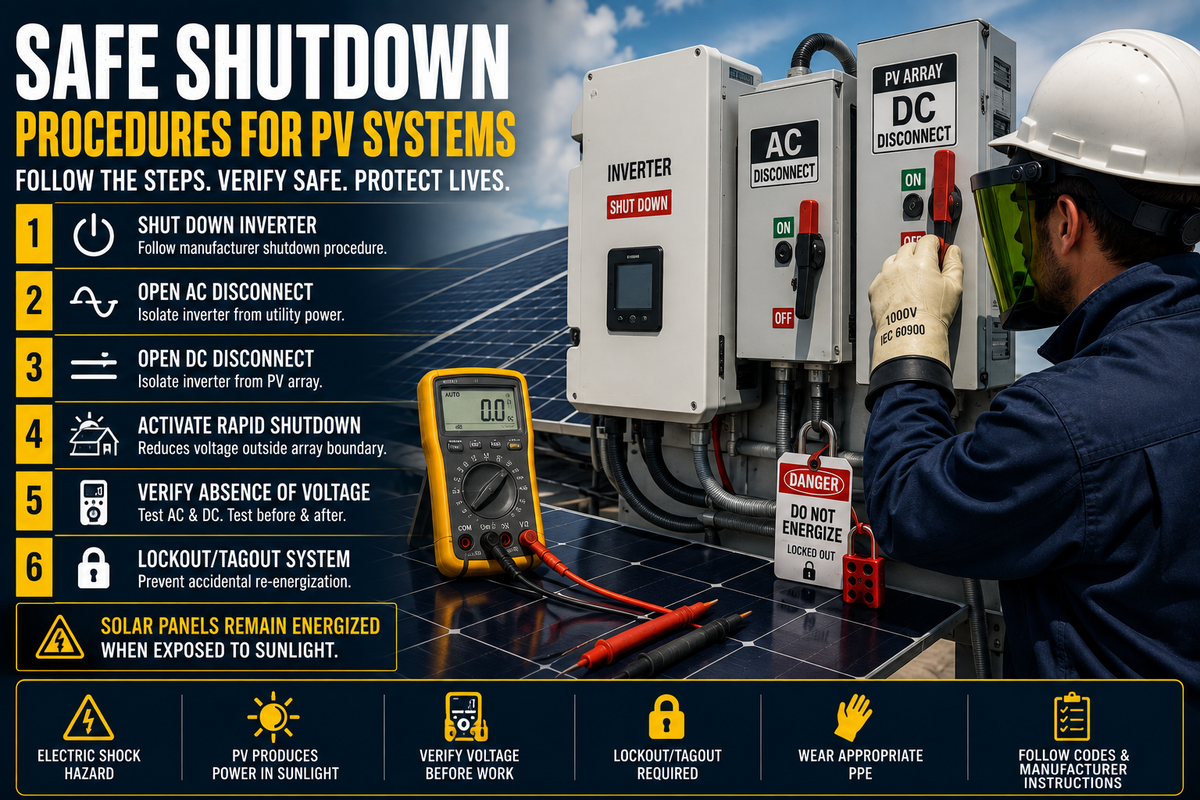

Technician performing a safe shutdown of a solar PV system using AC and DC disconnects.

Safe Shutdown Procedures for PV Systems: How to Safely De-Energize Solar Installations

Shutting down a solar photovoltaic (PV) system is not as simple as flipping a single switch. Unlike traditional electrical systems, solar panels continue producing electricity whenever sunlight reaches the photovoltaic cells. Even after utility power has been disconnected, portions of a PV system may remain energized, creating serious electrical hazards for installers, electricians, maintenance technicians, inspectors, and emergency responders.

Understanding the proper shutdown sequence is essential for reducing the risk of electric shock, arc flash, equipment damage, and unexpected system energization. While every installation should follow the manufacturer's instructions, safe shutdown procedures are also governed by applicable electrical codes and workplace safety standards.

This guide explains how to safely shut down a solar PV system, why shutdown procedures matter, and the precautions workers should take before performing maintenance.

For an overview of photovoltaic operation, see Understanding How Solar PV Systems Work.

Why Safe Shutdown Matters

Solar panels generate direct current (DC) electricity whenever exposed to sunlight.

Unlike conventional utility power, this energy source cannot simply be turned off.

Even after:

  • Opening the main breaker
  • Turning off the inverter
  • Disconnecting utility service

…the conductors between the solar array and the inverter may still carry hazardous voltage.

Failing to understand this can result in:

  • Electric shock
  • Arc flash
  • Equipment damage
  • Unexpected energization
  • Serious injury or death

Learn more in Why Solar Panels Remain Energized.

Understand Your PV System

Before shutting down any solar installation, identify the major system components.

Most systems include:

  • Solar PV modules
  • DC string wiring
  • Combiner boxes
  • DC disconnect
  • Inverter
  • AC disconnect
  • Main electrical service
  • Battery Energy Storage System (if installed)

Knowing how these components interact helps ensure the shutdown sequence is performed safely.

Step 1: Notify Affected Personnel

Before beginning work:

  • Inform anyone affected by the shutdown.
  • Follow company procedures.
  • Obtain any required work permits.
  • Review the manufacturer's shutdown instructions.

Communication helps prevent unexpected system operation during maintenance.

Step 2: Wear Appropriate PPE

Before approaching energized equipment, workers should wear PPE appropriate for the identified hazards.

Depending on the task, this may include:

  • Voltage-rated rubber insulating gloves
  • Leather protector gloves
  • Arc-rated clothing
  • Arc-rated face shield
  • Safety glasses
  • Hard hat
  • Electrical safety footwear

For more information, see Understanding Electrical PPE Requirements.

Step 3: Shut Down the Inverter

Most manufacturers recommend beginning with the inverter shutdown procedure.

Depending on the equipment, this may involve:

  • Using the inverter shutdown control
  • Following the on-screen shutdown sequence
  • Waiting for internal shutdown indicators

Always follow manufacturer instructions.

Step 4: Open the AC Disconnect

After the inverter has shut down:

  • Open the AC disconnect.
  • Isolate the inverter from the utility supply.
  • Verify disconnect position.

This removes AC power from the inverter output.

However, the solar array may still be producing DC electricity.

Step 5: Open the DC Disconnect

Next:

  • Open the DC disconnect.
  • Isolate the inverter from the solar array.

While this protects the inverter, the conductors between the PV modules and the disconnect may still remain energized whenever sunlight is present.

Learn more in Understanding DC Voltage in Solar Systems.

Step 6: Activate Rapid Shutdown (If Equipped)

Many modern systems include Rapid Shutdown equipment required by NEC Article 690.

Rapid Shutdown is intended to reduce voltage outside the array boundary for firefighter and worker safety.

However:

Rapid Shutdown does not eliminate all voltage within the PV array.

Workers should never assume the system is completely de-energized simply because Rapid Shutdown has been activated.

See NEC Article 690: Solar Photovoltaic (PV) Systems Explained.

Step 7: Verify the Absence of Voltage

Never rely solely on switch positions or indicator lights.

Always:

  • Test with properly rated electrical test equipment.
  • Verify your tester on a known live source before and after testing.
  • Check both AC and DC conductors.
  • Confirm stored energy has dissipated where applicable.

Testing is the only reliable method for confirming an electrically safe work condition.

Step 8: Lockout/Tagout the System

If maintenance is being performed:

  • Apply Lockout/Tagout devices.
  • Attach warning tags.
  • Prevent accidental re-energization.
  • Follow OSHA hazardous energy control procedures.

See Lockout/Tagout for Solar Installations.

Special Considerations for Battery Systems

If the installation includes Battery Energy Storage Systems (BESS):

Additional shutdown procedures may be required.

Battery systems may:

  • Remain energized
  • Store hazardous energy
  • Supply power independently of the solar array

Always follow manufacturer shutdown procedures for battery equipment.

Learn more in Battery Energy Storage System (BESS) Electrical Safety.

Common Shutdown Mistakes

Accidents frequently occur because workers:

  • Assume opening one disconnect de-energizes the entire system.
  • Ignore battery storage systems.
  • Skip voltage verification.
  • Remove covers before testing.
  • Fail to apply Lockout/Tagout.
  • Trust indicator lights instead of using a meter.
  • Forget that solar modules continue producing electricity.

Avoiding these mistakes significantly improves worker safety.

The Role of Insulated Tools

During shutdown and verification procedures, technicians often work near energized conductors before an electrically safe work condition has been established.

IEC 60900 certified 1,000V insulated hand tools help reduce the likelihood of accidental short circuits and minimize the risk of electric shock while performing inspections, testing, or disconnect procedures.

Insulated tools are an additional layer of protection and should always be used alongside proper PPE, voltage verification, and Lockout/Tagout procedures.

Learn more in IEC 60900: The International Standard for Insulated Hand Tools.

Applicable Safety Standards

Safe PV shutdown procedures should follow:

  • OSHA electrical safety regulations
  • NFPA 70E safe work practices
  • NEC Article 690 photovoltaic requirements
  • Manufacturer installation and maintenance instructions

Together, these requirements help establish safe work practices for solar installations.

For more information, see NFPA 70E Explained: Electrical Safety in the Workplace.

Best Practices for Safe PV Shutdown

Every technician should:

  • Treat every PV system as energized until proven otherwise.
  • Follow the manufacturer's shutdown procedure.
  • Wear appropriate PPE.
  • Open AC and DC disconnects in the proper sequence.
  • Activate Rapid Shutdown when available.
  • Verify the absence of voltage.
  • Apply Lockout/Tagout before maintenance.
  • Use IEC 60900 insulated tools.
  • Understand battery system hazards.
  • Never bypass safety devices.

Final Thoughts

Safely shutting down a photovoltaic system requires more than simply disconnecting utility power. Because solar modules continue generating electricity whenever exposed to sunlight, technicians must understand the limitations of disconnects, Rapid Shutdown systems, and battery storage equipment.

By following manufacturer procedures, complying with OSHA, NFPA 70E, and NEC Article 690, verifying the absence of voltage, applying Lockout/Tagout, and using properly rated insulated tools, workers can significantly reduce the risk of electric shock and arc flash while servicing solar PV systems.
