TK16MT – 14-Piece 1000V Insulated SAE Meter Tool Kit | IEC 60900 / ASTM F1505

The TK16MT 14-Piece 1000V Insulated SAE Meter Tool Kit provides utility meter technicians, electricians, and electrical maintenance professionals with a versatile selection of insulated hand tools for routine meter installation, servicing, and electrical maintenance applications.

Designed for professional utility fieldwork, this comprehensive kit combines insulated pliers, nut drivers, Phillips and slotted screwdrivers, and a fuse puller in one convenient package.

The kit includes two tool rolls and a lightweight, sturdy toolbox, providing organized storage and convenient transportation between service locations.

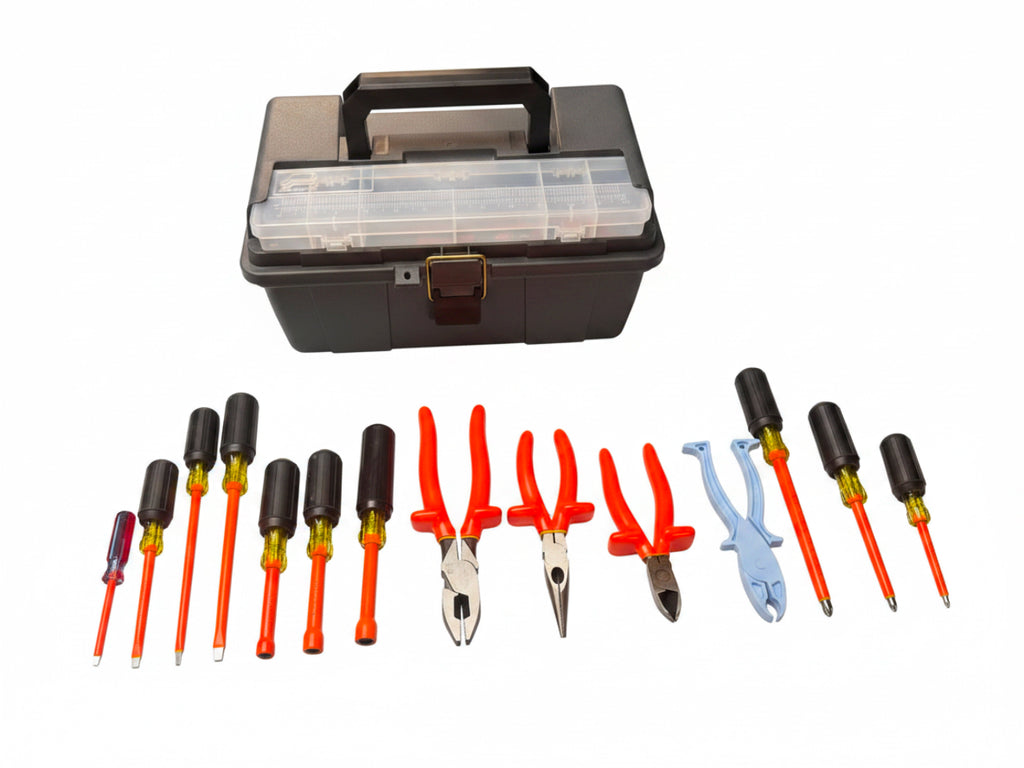

Kit Contents

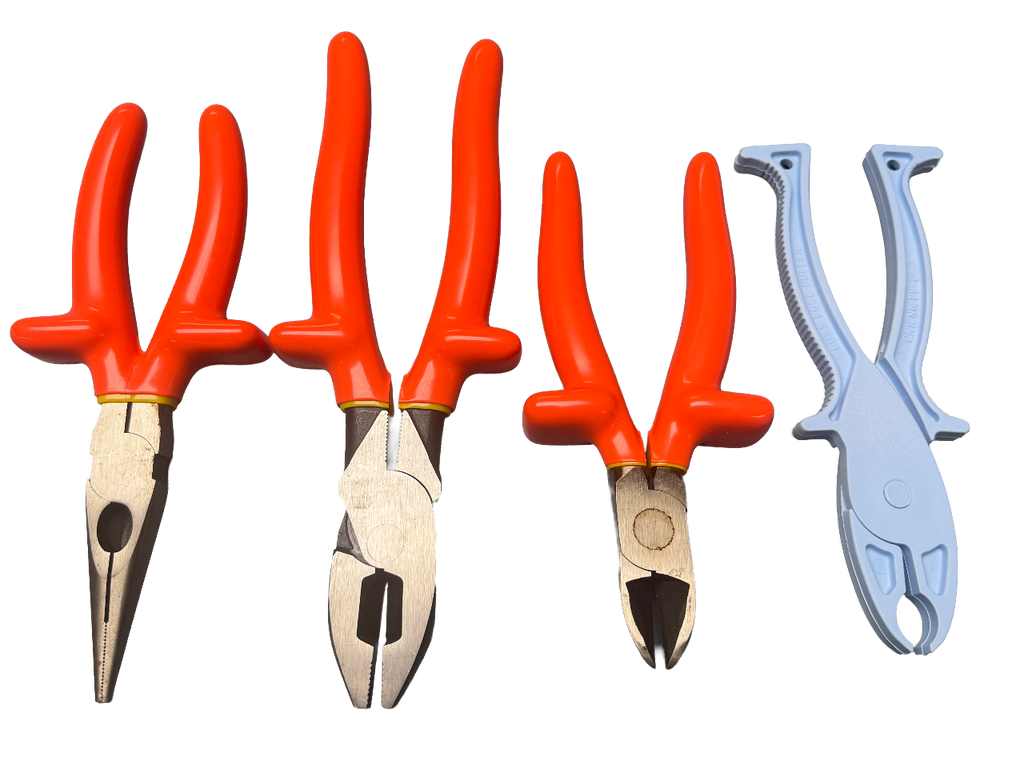

Insulated Pliers & Cutting Tools

• (1) 9" Lineman's Pliers

• (1) 7" Diagonal Cutting Pliers

• (1) 8" Long Nose Pliers

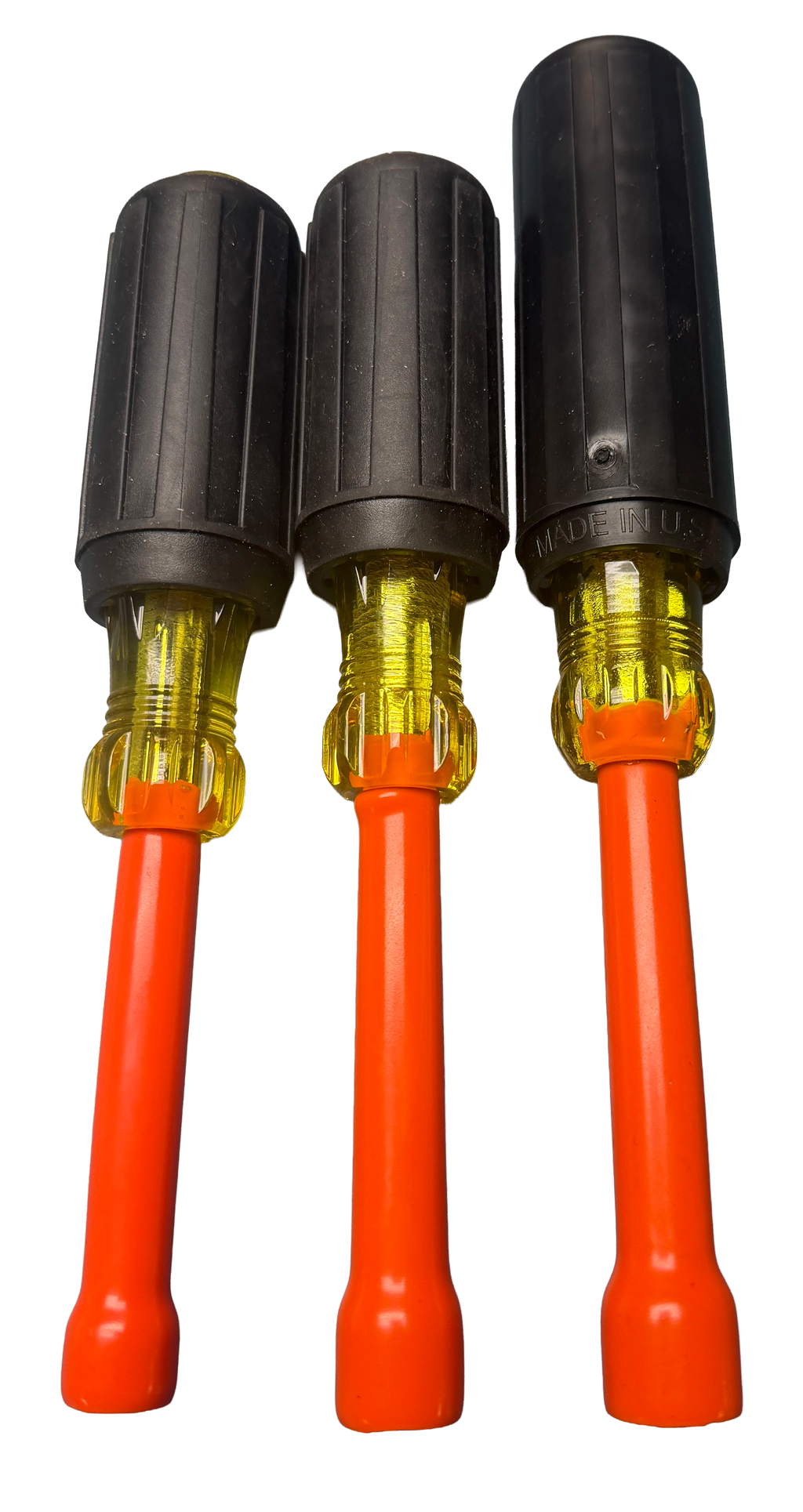

Insulated SAE Nut Drivers

• (1) 5/16" × 3" Nut Driver

• (1) 3/8" × 3" Nut Driver

• (1) 1/2" × 3" Nut Driver

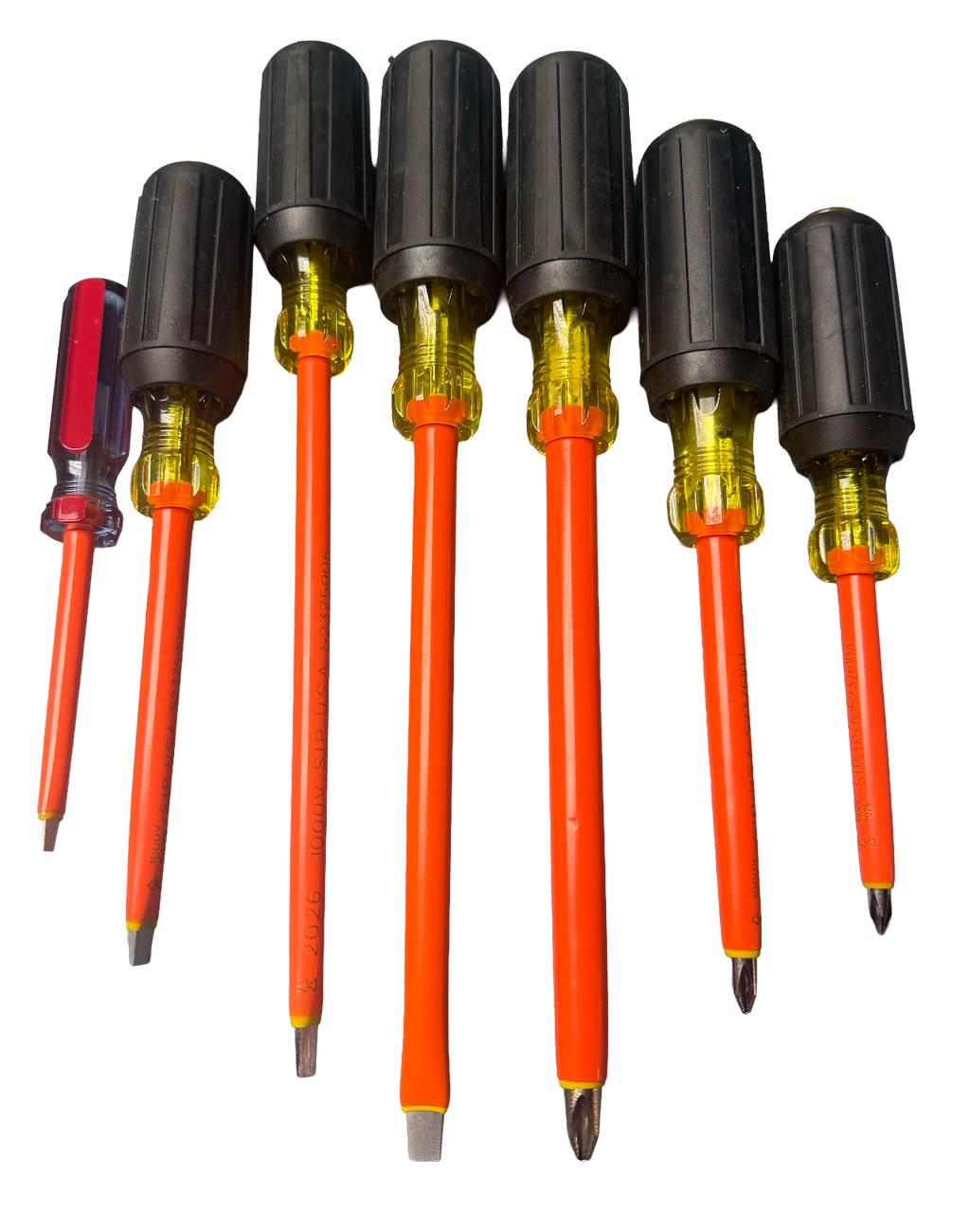

Insulated Phillips Screwdrivers

• (1) #1 × 3" Phillips Screwdriver

• (1) #2 × 4" Phillips Screwdriver

• (1) #3 × 6" Phillips Screwdriver

Insulated Slotted Screwdrivers

• (1) 1/8" × 2" Slotted Screwdriver

• (1) 3/16" × 6" Slotted Screwdriver

• (1) 1/4" × 6" Slotted Screwdriver

Additional Electrical Tools

• (1) Fuse Puller

Storage & Organization

• (2) Tool Rolls

• (1) Lightweight, Sturdy Toolbox

Key Features & Benefits

• 1000V Insulated Hand Tools: Designed for electrical applications within the applicable voltage ratings and limitations of the individual tools.

• IEC 60900 / ASTM F1505: Identified as meeting recognized standards for insulated hand tools used in professional electrical applications.

• Utility Meter Service Configuration: Includes essential tools commonly used in meter installation, inspection, maintenance, and servicing.

• Versatile SAE Nut Driver Selection: Three commonly used SAE sizes support fastening and adjustment tasks.

• Comprehensive Screwdriver Assortment: Six Phillips and slotted screwdrivers accommodate a variety of electrical fasteners.

• Essential Gripping & Cutting Tools: Lineman's, diagonal cutting, and long nose pliers support wire handling, positioning, and cutting applications.

• Dedicated Fuse Puller: Provides an additional tool for appropriate fuse-handling applications, subject to equipment ratings and safe-work procedures.

• Dual-Color Insulation: The insulation design incorporates a contrasting underlayer to help technicians identify visible insulation wear or damage.

• Portable Tool Storage: Two tool rolls and a sturdy toolbox help keep tools organized, protected during storage, and accessible in the field.

Recommended Applications

• Utility electric meter installation and maintenance

• Electrical metering equipment servicing

• Utility field service and maintenance

• Electrical panel and enclosure maintenance

• Commercial and industrial electrical maintenance

• Electrical equipment inspection and repair

• General electrical fastening, gripping, and wire preparation

Electrical Safety & Standards

The TK16MT is identified as meeting IEC 60900 and ASTM F1505 requirements for insulated hand tools intended for professional electrical applications.

The insulation material is described as flame-retardant, with a dual-color construction that provides a visual indication of insulation wear.

Important Inspection Guidance: If the contrasting yellow underlayer becomes visible through the outer insulation, remove the affected tool from service. Visible cuts, cracks, burns, loose insulation, or other deterioration are also reasons to remove an insulated tool from service.

Insulated hand tools provide an additional protective measure when used within their intended applications and ratings. They do not replace proper deenergization, lockout/tagout procedures, verification of an electrically safe work condition, or appropriate personal protective equipment.

The TK16MT delivers a practical assortment of insulated utility meter service tools with organized, portable storage, making it a convenient solution for professional electrical metering and maintenance applications.
